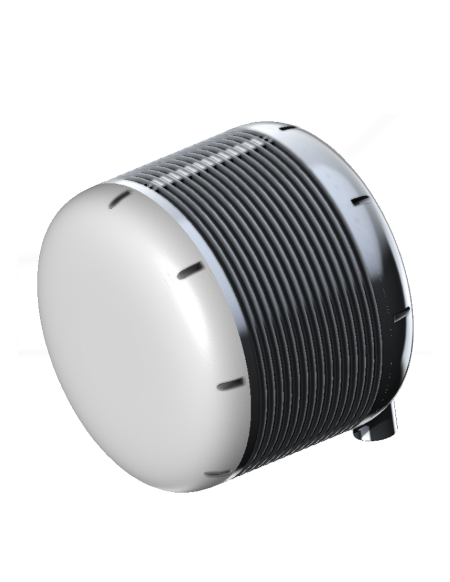

Iris-M™ Macro Cell RU 5G n79 AAU

Iris-M™ Macro Cell n79 Radio Unit (RU) is a 5G coherent massive MIMO 3D steerable active array unit (AAU) leveraging Abside’s RF-Retina™ technology and supporting the 5G waveform across all 600 MHz of the 5G NR n79 spectrum (4400 MHz through 5000 MHz) from a single unit / SKU. The Iris-M™ array implements high-order fully digital beamforming which enables both massive MIMO 5G operation and beamforming with 3D beam steering, providing industry-leading uplink performance, throughput, and range.

    Uplink & Downlink

  • 5G Band n79 (NATO Band IV)
  • 4400 MHz - 5000 MHz

    Integrated Antenna

  • +20 dBi gain integrated antenna
  • 72 Active Antenna Elements
  • Dual Slant Polarization

    Scalable RF

  • 6 Active Beams/Cells @ 2T2R or
  • 3 Active Beam/Cell @ 4T4R

    TX Power

  • +32W Total RF Power
  • (+16W per polarization)

    5G LTE Bandwidths

  • 10, 20, 30, 40, 50, 60, 70, 80,
  • 90, & 100 MHz (3GPP Rel.17)

    O-RAN

  • Compliant

    Peak Data Rates

  • DL +1 Gbps
  • UL +1 Gbps

    Duplex Schema

  • LTE 5G NR
  • Dynamic TDD

    I/O’s & RU Interface

  • 1*QSP28 (100GigE)
  • eCPRI with SyncE option
  • Split 8, ORAN 7.2* (in development)
  • Integrated GPS for asynchronous vRAN
  • Power -48VDC

    Environmentals

  • IP67 Design
  • -40°C to +50°C

    Size

  • ~20x~20”x~16”

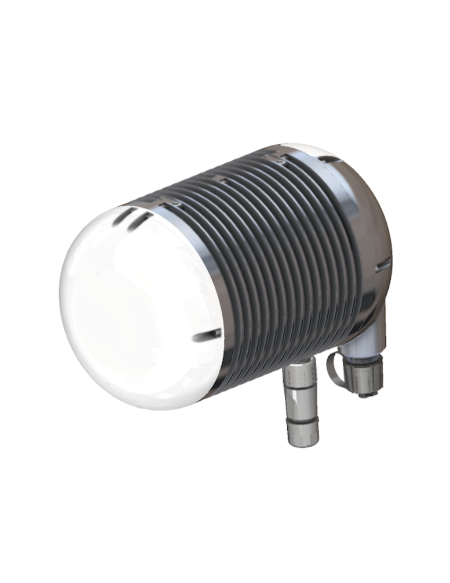

Iris-S™ Small Cell RU 5G n79 AAU

Iris-S™ Small Cell n79 Radio Unit (RU) is a 5G coherent massive MIMO 3D steerable active array unit (AAU) leveraging Abside’s RF-Retina™ technology and supporting the 5G waveform across all 600 MHz of the 5G NR n79 spectrum (4400 MHz through 5000 MHz) from a single unit / SKU. The Iris-S™ array implements high-order fully digital beamforming which enables both massive MIMO 5G operation and beamforming with 3D beam steering, providing industry-leading uplink performance, throughput, and range.

    Uplink & Downlink

  • 5G Band n79 (NATO Band IV)
  • 4400 MHz - 5000 MHz

    Integrated Antenna

  • +11 dBi gain integrated antenna
  • 8 Active Antenna Elements
  • Dual Slant Polarization

    Scalable RF

  • 2 Active Beams/Cells @ 2T2R or
  • 1 Active Beam/Cell @ 4T4R

    TX Power

  • 4W Total RF Power
  • (2W per polarization)

    5G LTE Bandwidths

  • 10, 20, 30, 40, 50, 60, 70, 80,
  • 90, & 100 MHz (3GPP Rel.17)

    O-RAN

  • Compliant

    Peak Data Rates

  • DL +1 Gbps
  • UL +1 Gbps

    Duplex Schema

  • LTE 5G NR
  • Dynamic TDD

    I/O’s & RU Interface

  • 1*QSP28 (100GigE)
  • eCPRI split 8 with SyncE option
  • ORAN 7.2* (in development)
  • Integrated GPS for asynchronous vRAN
  • Power 20-33VDC

    Environmentals

  • IP67 Design
  • -40°C to +50°C

    Size

  • ~7” x ~7” x ~11”

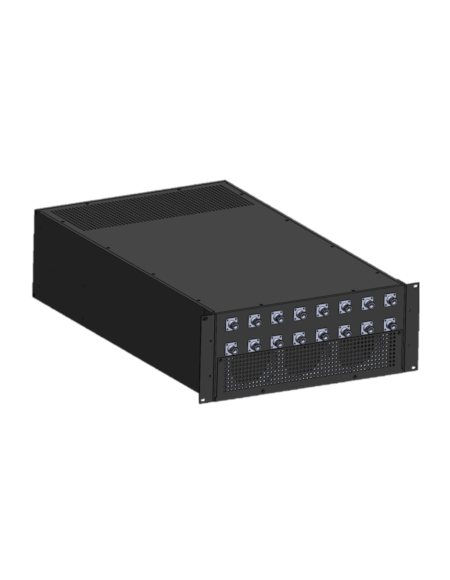

Iris-RC™ Small Cell RU 5G n79 AAU

Iris-RC™ Small Cell n79 Radio Unit (RU) is a dual RU 5G (AAU) optimized for use with radiating cables (a.k.a. “Leaky Coax”) for indoor locations and supporting the 5G waveform across all 600 MHz of the 5G NR n79 spectrum (4400 MHz through 5000 MHz) from a single unit / SKU. The Iris-RC™ internal array implements massive MIMO 5G operation providing industry-leading performance and throughput. The Iris-RC™ transmit power can be granularly reduced in order to limit RF spillage for sensitive locations.

    Uplink & Downlink

  • 5G Band n79 (NATO Band IV)
  • 4400 MHz - 5000 MHz

    External Antenna

  • optimized for use with radiating cables (a.k.a. “Leaky Coax”)
  • Supports Dual Slant Polarization

    Scalable RF

  • 2 Active Beams/Cells @ 2T2R or
  • 1 Active Beam/Cell @ 4T4R

    TX Power

  • +4W Total RF Power
  • (+2W per polarization)

    5G LTE Bandwidths

  • 10, 20, 30, 40, 50, 60, 70, 80,
  • 90, & 100 MHz (3GPP Rel.17)

    O-RAN

  • Compliant

    Peak Data Rates

  • DL +1 Gbps
  • UL +1 Gbps

    Duplex Schema

  • LTE 5G NR
  • Dynamic TDD

    I/O’s & RU Interface

  • 1*QSP28 (100GigE) per RU
  • eCPRI with SyncE option
  • Split 8, ORAN 7.2* (in development)
  • Integrated GPS for asynchronous vRAN
  • Power 100-240VAC, 50-60Hz

    Environmentals

  • Indoor Use Only
  • +10°C to +35°C

    Size

  • 4RU (~7” x ~19” x ~30”)

Iris-M™ Macro Cell RU 5G n48/n78 & CBRS AAU

Iris-M™ Macro Cell RU 5G n48/n78 and 4G LTE CBRS Radio Unit (RU) is a massive MIMO 3D steerable active array unit (AAU) leveraging Abside’s RF-Retina™ technology and supporting the 5G waveform across all 500 MHz of the 5G NR n48/n78 spectrum (3300 MHz through 3800 MHz) & all 150 MHz of the Citizens Broadband Radio Service (CBRS) spectrum (3550 MHz through 3700 MHz) from a single unit / SKU. The Iris-M™ Macro Cell 5G n48/n78 & CBRS array implements fully digital beamforming which enables both massive MIMO 5G operation and 3D beamforming which provides industry-leading uplink performance and throughput while providing and delivering unprecedented downlink throughput and connectivity.

    Uplink & Downlink

  • 5G Band n48/n78 & 4G LTE CBRS
  • 3300 MHz - 3800 MHz

    Integrated Antenna

  • +20 dBi gain integrated antenna
  • 72 Active Antenna Elements
  • Dual Slant Polarization

    Scalable RF

  • 6 Active Beams/Cells @ 2T2R or
  • 3 Active Beam/Cell @ 4T4R

    TX Power

  • +32W Total RF Power
  • (+16W per polarization)

    5G LTE Bandwidths

  • 10, 20, 30, 40, 50, 60, 70, 80,
  • 90, & 100 MHz (3GPP Rel.17)

    O-RAN

  • Compliant

    Peak Data Rates

  • DL +1 Gbps
  • UL +1 Gbps

    Duplex Schema

  • LTE 5G NR
  • Dynamic TDD

    I/O’s & RU Interface

  • 1*QSP28 (100GigE)
  • eCPRI with SyncE option
  • Split 8, ORAN 7.2* (in development)
  • Integrated GPS for asynchronous vRAN
  • Power -48VDC

    Environmentals

  • IP67 Design
  • -40°C to +50°C

    Size

  • ~20”x~20”x~16”

Iris-S™ Small Cell RU 5G n48/n78 & CBRS AAU

Iris-S™ Small Cell RU 5G n48/n78 and 4G LTE CBRS Radio Unit (RU) is a massive MIMO 3D steerable active array unit (AAU) leveraging Abside’s RF-Retina™ technology and supporting the 5G waveform across all 500 MHz of the 5G NR n48/n78 spectrum (3300 MHz through 3800 MHz) & all 150 MHz of the Citizens Broadband Radio Service (CBRS) spectrum (3550 MHz through 3700 MHz) from a single unit / SKU. The Iris-S™ Small Cell 5G n48/n78 & CBRS array implements fully digital beamforming which enables both massive MIMO 5G operation and 3D beamforming which provides industry-leading uplink performance and throughput while providing and delivering unprecedented downlink throughput and connectivity.

    Uplink & Downlink

  • 5G Band n48/n78 & 4G LTE CBRS
  • 3300 MHz - 3800 MHz

    Integrated Antenna

  • +11 dBi gain integrated antenna
  • 8 Active Antenna Elements
  • Dual Slant Polarization

    Scalable RF

  • 2 Active Beams/Cells @ 2T2R or
  • 1 Active Beam/Cell @ 4T4R

    TX Power

  • 4W Total RF Power
  • (2W per polarization)

    5G LTE Bandwidths

  • 10, 20, 30, 40, 50, 60, 70, 80,
  • 90, & 100 MHz (3GPP Rel.17)

    O-RAN

  • Compliant

    Peak Data Rates

  • DL +1 Gbps
  • UL +1 Gbps

    Duplex Schema

  • LTE 5G NR
  • Dynamic TDD

    I/O’s & RU Interface

  • 1*QSP28 (100GigE)
  • eCPRI split 8 with SyncE option
  • ORAN 7.2* (in development)
  • Integrated GPS for asynchronous vRAN
  • Power 20-33VDC

    Environmentals

  • IP67 Design
  • -40°C to +50°C

    Size

  • ~7” x ~7” x ~11”

Iris-M™ Macro Cell RU 5G n41 AAU

Iris-M™ Macro 5G n41 Radio Unit (RU) is a massive MIMO 3D steerable active array unit (AAU) leveraging Abside’s RF-Retina™ technology and supporting the 5G waveform across all 194 MHz of the 5G NR n41 spectrum (2496 MHz through 2690 MHz) from a single unit / SKU. The Iris-M™ Macro Cell 5G n41 array implements fully digital beamforming which enables both massive MIMO 5G operation and 3D beamforming which provides industry-leading uplink performance and throughput while providing and delivering unprecedented downlink throughput and connectivity.

    Uplink & Downlink

  • 5G Band n41
  • 2496 MHz - 2690 MHz

    Integrated Antenna

  • +20 dBi gain integrated antenna
  • 72 Active Antenna Elements
  • Dual Slant Polarization

    Scalable RF

  • 6 Active Beams/Cells @ 2T2R or
  • 3 Active Beam/Cell @ 4T4R

    TX Power

  • +32W Total RF Power
  • (+16W per polarization)

    5G LTE Bandwidths

  • 10, 20, 30, 40, 50, 60, 70, 80,
  • 90, & 100 MHz (3GPP Rel.17)

    O-RAN

  • Compliant

    Peak Data Rates

  • DL +1 Gbps
  • UL +1 Gbps

    Duplex Schema

  • LTE 5G NR
  • Dynamic TDD

    I/O’s & RU Interface

  • 1*QSP28 (100GigE)
  • eCPRI with SyncE option
  • Split 8, ORAN 7.2* (in development)
  • Integrated GPS for asynchronous vRAN
  • Power -48VDC

    Environmentals

  • IP67 Design
  • -40°C to +50°C

    Size

  • ~36”x~36”x~16”

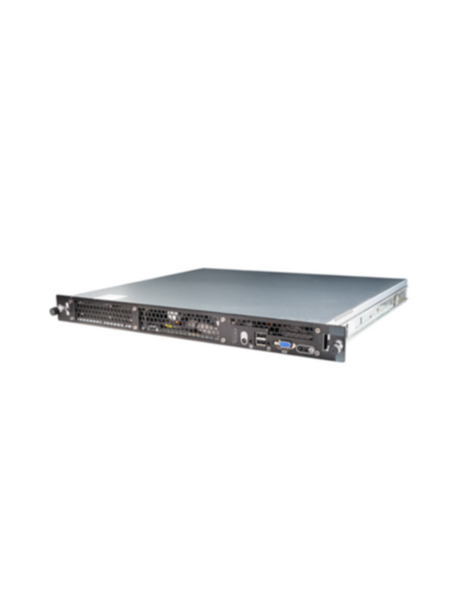

Hyperion CU/DU

The Hyperion CD/DU leveraging vRAN Technology is capable of scaling on edge virtualized platforms and providing the CU/DU functions. Already deployed by Tier1 commercial vendors, the Hyperion CU/DU offers a large set of the 5G NR specifications. Multiple Hyperion CU/DU can be orchestrated by the Hyperion RIC. The Hyperion RIC is a specialized mission critical RAN controller with active interference detection and mitigation using multidimensional space-frequency optimization to maintain optimal links and traffic flow.

    Scalable RF

  • Supports beamforming and active beam steering

    5G LTE Bandwidths

  • 10, 20, 30, 40, 50, 60, 70, 80,
  • 90, & 100 MHz (3GPP Rel.17)

    O-RAN

  • Compliant

    Peak Data Rates

  • DL +2 Gbps
  • UL +2 Gbps

    RU I/O’s

  • 1*QSP28 (100GigE)
  • eCPRI with SyncE
  • Split 8, ORAN 7.2* (in development)

    Network I/O’s

  • 2 RJ45 @ 10GbE
  • (SFP+ Option Available)

    Remote Mgmt

  • Dedicated IPMI

    Size

  • 1U Rackmount

    Power

  • 100-240VAC, 50-60Hz (Redundant & VDC Options Available)

    Environmentals

  • Operation temperature: 10°C ~ 35°C*
  • Non operation temperature: -40°C ~ 70°C
  • (Extended Temperature Options Available)

Helios 5G Core SA

The Helios 5G Core SA (Stand-Alone) network software is a unique full software 5G solution capable of operating as a standalone system or as an integrated component in a larger network deployment. Focused on 5G SA mode, the 5G Core, EPC, eMBMS gateway and IMS server run on generic x86 hardware, natively ready for virtualized environments.

    Network I/O’s

  • 2 RJ45 @ 10GbE
  • (SFP+ Option Available)

    Remote Mgmt

  • Dedicated IPMI

    Size

  • 1U Rackmount

    Power

  • 100-240VAC, 50-60Hz (Redundant & VDC Options Available)

    Environmentals

  • Operation temperature: 10°C ~ 35°C*
  • Non operation temperature: -40°C ~ 70°C
  • (Extended Temperature Options Available)

Narthex FIPS Security Suite for 5G

The Narthex Security Suite (FIPS 140-2 AES 256, FIPS 140-3 in progress) supports multiple secure Layer-2 or Layer-3 networks over the 5G network. Each Secure Network hosts a Security Termination Point, attached to the P/SGW on the Core Network side and connected to FIPS security clients embedded in the Galerus UEs. The Layer-2 approach drastically reduces deployment complexity for the users of the private 5G domains, enabling scalable standard networking solutions, and hiding the complexity of the 5G core network. The Narthex FIPS Security Suite features strong FIPS 140-2 AES 256 (FIPS 140-3 in progress) end-to-end encryption, multi-factor authentication, secure over the air rekeying, LAN device identification, and an easy-to-use web-interface.

    Encryption

  • AES 256 end-to-end encryption
  • FIPS 140-2
  • (FIPS 140-3 in development)

    Multi-Domain / Multi-Tenant

  • Multi-Domain / Multi-Tenant capable enabling hosting multiple secure private networks across a shared 5G network

    Authentication

  • Robust Multi-Factor Authentication (MFA)

    Scalable

  • Scalable to 1000’s of clients per domain / tenant

    Management

  • Manageable via modern web-interface and API's

    Network I/O’s

  • 2 RJ45 @ 10GbE
  • (SFP+ Option Available)

    Remote Mgmt

  • Dedicated IPMI

    Size

  • 1U Rackmount

    Power

  • 100-240VAC, 50-60Hz (Redundant & VDC Options Available)

    Environmentals

  • Operation temperature: 10°C ~ 35°C
  • Non operation temperature: -40°C ~ 70°C
  • (Extended Temperature Options Available)

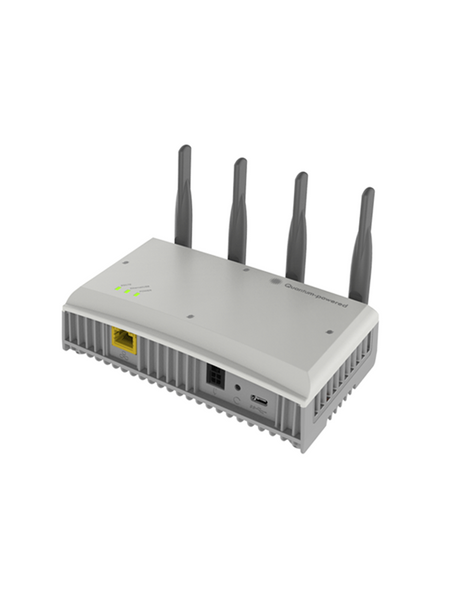

Galerus UE Omni n79 Optimized

The Galerus 5G n79 User Equipment (UE) is a 5G radio based wireless router using the 5G waveform across all 600 MHz of the 5G NR n79 spectrum (4400 MHz through 5000 MHz) from a single unit / SKU. The Galerus 5G n79 User equipment (UE) utilizes high-order fully digital beamforming which enables both 5G massive MIMO cooperation and beamforming with 2D beam steering, providing industry-leading uplink performance and throughput while providing and delivering unprecedented downlink throughput and connectivity. The Galerus 5G n79 User equipment (UE) is a 2T4R MIMO endpoint with integrated GPS/GNSS receiver.

    Uplink & Downlink

  • 4400 MHz - 5000 MHz

    Scalable RF

  • 2T4R MIMO

    5G LTE Bandwidths

  • 40, 50, 60, 70, 80, 90, & 100 MHz (3GPP Rel.16)

    Peak Data Rates

  • DL +1 Gbps
  • UL +1 Gbps

    Duplex Schema

  • 5G NR Dynamic TDD

    Interfaces

  • 100/1/2.5/5 Gbps Base-T RJ-45
  • USB 3.1 Gen2 10 Gbps Type C

    Extended Temp

  • -30°C to +75°C

    Size

  • 150mm x 88mm x 39mm

    Weight

  • ~670 grams

    Power

  • 12 VDC

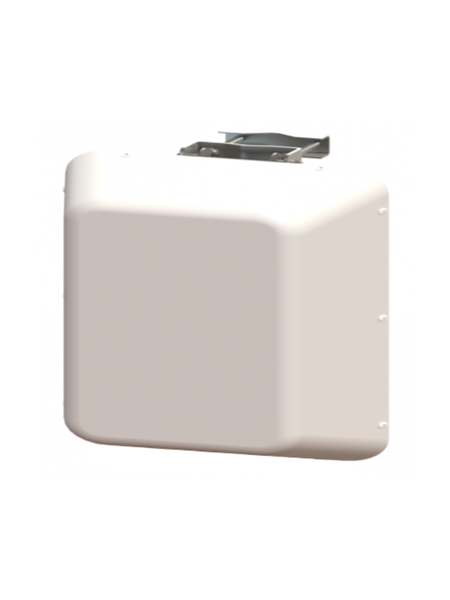

Galerus UE Panel n79 Optimized

The Galerus 5G n79 User Equipment (UE) is a 5G radio based wireless router using the 5G waveform across all 600 MHz of the 5G NR n79 spectrum (4400 MHz through 5000 MHz) from a single unit / SKU. The Galerus 5G n79 User equipment (UE) utilizes high-order fully digital beamforming which enables both 5G massive MIMO cooperation and beamforming with 2D beam steering, providing industry-leading uplink performance and throughput while providing and delivering unprecedented downlink throughput and connectivity. The Galerus 5G n79 User equipment (UE) is a 2T4R MIMO endpoint with integrated GPS/GNSS receiver.

    Uplink & Downlink

  • 4400 MHz - 5000 MHz

    Scalable RF

  • 2T4R MIMO with integrated high gain sector antenna which increases range and throughput while reducing uplink intercell interference

    5G LTE Bandwidths

  • 40, 50, 60, 70, 80, 90, & 100 MHz (3GPP Rel.16)

    Peak Data Rates

  • DL +1 Gbps
  • UL +1 Gbps

    Duplex Schema

  • 5G NR Dynamic TDD

    Interfaces

  • 100/1/2.5/5 Gbps Base-T RJ-45
  • USB 3.1 Gen2 10 Gbps Type C

    Extended Temp

  • -30°C to +75°C

    Size

  • 150mm x 150mm x 75mm

    Weight

  • ~950 grams

    Power

  • 12 VDC or PoE
