Bastion RRH
(eNodeB)

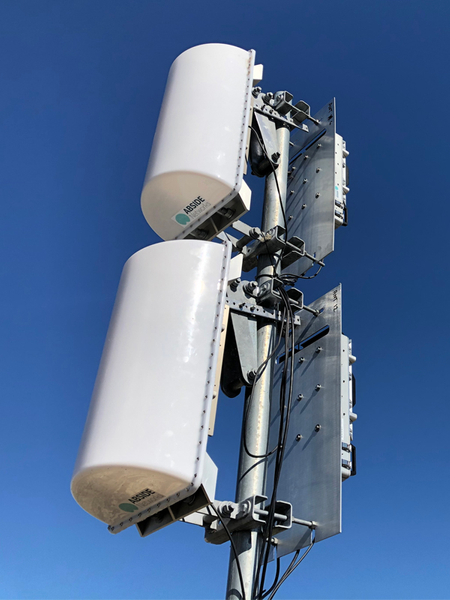

Bastion Remote Radio Head (BRRH) is the transmitting and receiving base station radio unit of the Vauban LTE Communication System. The BRRH is the world's first NTIA tri-band solution covering 760 MHz of spectrum in a single SKU. This unique frequency coverage of 16 NTIA bands enables a new class of spectrally resilient 4G LTE Self-Organizing-Networks (SON) using proven interference mitigation techniques.The BRRH features a simple power and digital connection to the Bastion Processing Unit (BPU) and a high performance integrated all-band sector antenna. No RF cabling is required during deployment.
- 2T2R 4G LTE
eNB RRH
- 1780 MHz - 1850 MHz
- 2200 MHz - 2300 MHz
- 4400 MHz - 4700 MHz
- 4700 MHz - 5000 MHz
760 Total MHZ Spectrum Coverage
- 2W transmit power across all bands
16 FDD & TDD LTE Bands Defined
- 4G LTE 20 MHz 2T2R TDD in 4 bands
- 4G LTE 20 MHz 2T2R FDD in 12 bands
Operation Modes
- 10dBi tri-sector compatible
Integrated All-Band Antennas
- single copper connection for power and IQ samples
- contact sales for CPRI option
Digital Interface to BBU
- Antenna + RRH: 569mm*302mm*193mm
- RRH Only: 347mm*233mm*45mm
Size
- RRH: ~3200g
- RRH + Antenna: ~6800g
Weight
Bastion BPU
(eNodeB)

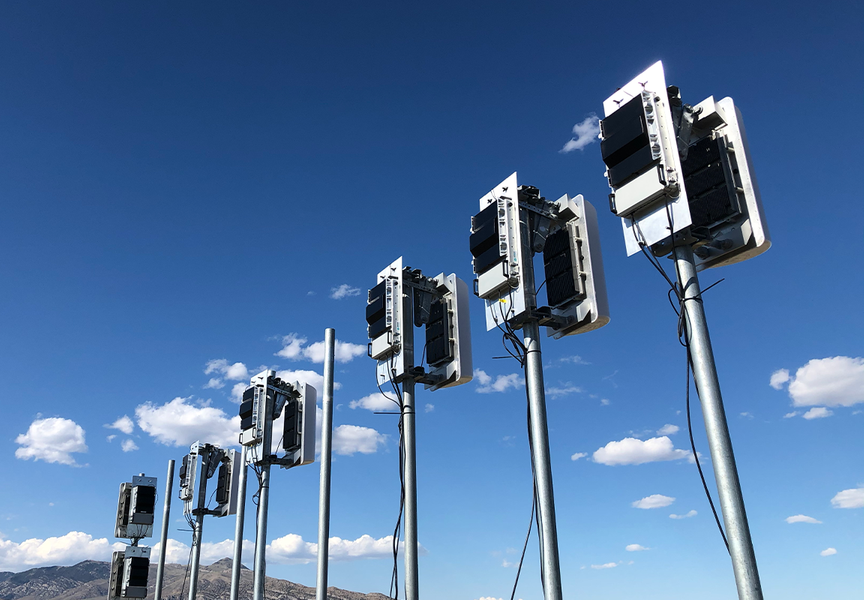

Bastion BPU is a small cell base station (eNodeB) for scalable private 4G LTE networks. The Bastion system is comprised of the Bastion Processing Unit (BPU) and up to four (4) Bastion Remote Radio Heads (BRRH) which combines a military grade RF front end, robust filtering, and integrated antennas. Bastion’s BPU and BRRH architecture allow each cell to scale to 4T4R MIMO for enhanced range and throughput. Bastion can be deployed independently or multiple Bastions can be deployed and networked together to provide greater RF coverage.
- 2T2R 4G LTE
eNB BPU
- 4G LTE 20 MHz 2T2R TDD in 4 bands
- 4G LTE 20 MHz 2T2R FDD in 12 bands
Operation Modes
- Supports asymmetric DL / UL bandwidths
Flexible
- Support 4 RRH
- Option for 1 * 4T4R
Scalable
- ~395mm*245mm*88mm
Size
- BPU: ~5900g
Weight
Ravelin-G
(UE)

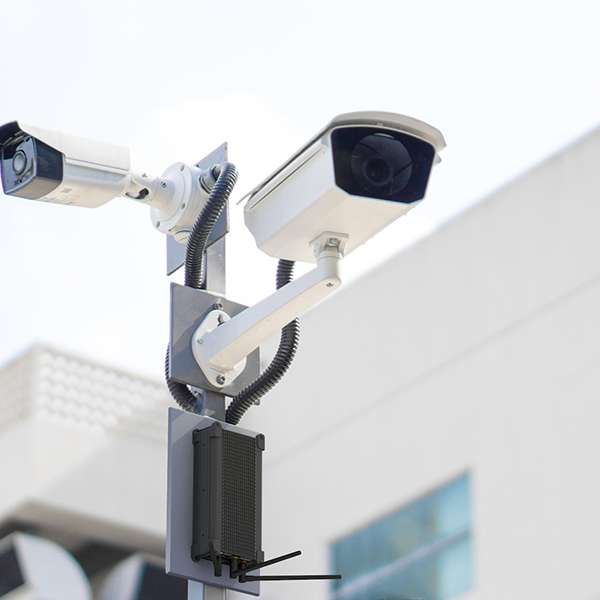

Ravelin-G is a 16 band enhanced high power smart user equipment (UE) for scalable private 4G LTE networks. Ravelin-G combines a military grade RF front end, robust filtering, powerful amplifiers, and discrete antennas. Ravelin-G is designed for deployment in the real world of harsh RF environments and can roam between multiple eNodeB’s. Ravelin-G can connect and network multiple devices into your private LTE network.
- Cat 4 1T2R 20MHz Rel 9
Smart UE
- 1780 MHz - 1850 MHz
- 2200 MHz - 2300 MHz
- 4400 MHz - 4700 MHz
- 4700 MHz - 5000 MHz
760 Total MHZ Spectrum Coverage
- +30 dBm class 1 UE in all bands
16 FDD & TDD LTE Bands Defined
- 1 GigE RJ45 LAN interface
- 1 USB 2.0
- Contact sales for additional available options
Interfaces
- Operates in NAT, routed, or FIPS VPN-Bridged mode (See Narthex)
Operation Modes
- 9 - 18V DC
Power
- ~148mm*73mm*38mm
Size
- BPU: ~500g
Weight
Narthex Security Suite for 5G & LTE
The Narthex Security Suite (FIPS 140-2 AES 256) supports multiple secure Layer-2 networks over the LTE network. Each Secure Network hosts a Security Termination Point, attached to the P/SGW on the Core Network side and connected to security clients embedded in the Ravelin UEs. The Layer 2 approach drastically reduces deployment complexity for the users of the private LTE domains, enabling scalable standard networking solutions, hiding the complexity and power of the LTE core network. The Security Suite features strong FIPS 140-2 AES 256 end-to-end encryption, multi-factor authentication, secure over the air rekeying, LAN device identification, and an easy-to-use web-interface. (FIPS 140-3 in progress.)
- AES 256 end-to-end encryption
- FIPS 140-2
- (FIPS 140-3 in development)
Encryption
- Multi-Domain / Multi-Tenant capable enabling hosting multiple secure private networks across a shared 5G or LTE network
Multi-Domain / Multi-Tenant
- Robust Multi-Factor Authentication (MFA)
Authentication
- Scalable to 1000’s of clients per domain / tenant
Scalable
- Manageable via modern web-interface and API's
Management
- 2 RJ45 @ 10GbE
- (SFP+ Option Available)
Network I/O’s
- Dedicated IPMI
Remote Mgmt
- 1U Rackmount
Size
- 100-240VAC, 50-60Hz (Redundant & VDC Options Available)
Power
- Operation temperature: 10°C ~ 35°C
- Non operation temperature: -40°C ~ 70°C
- (Extended Temperature Options Available)
